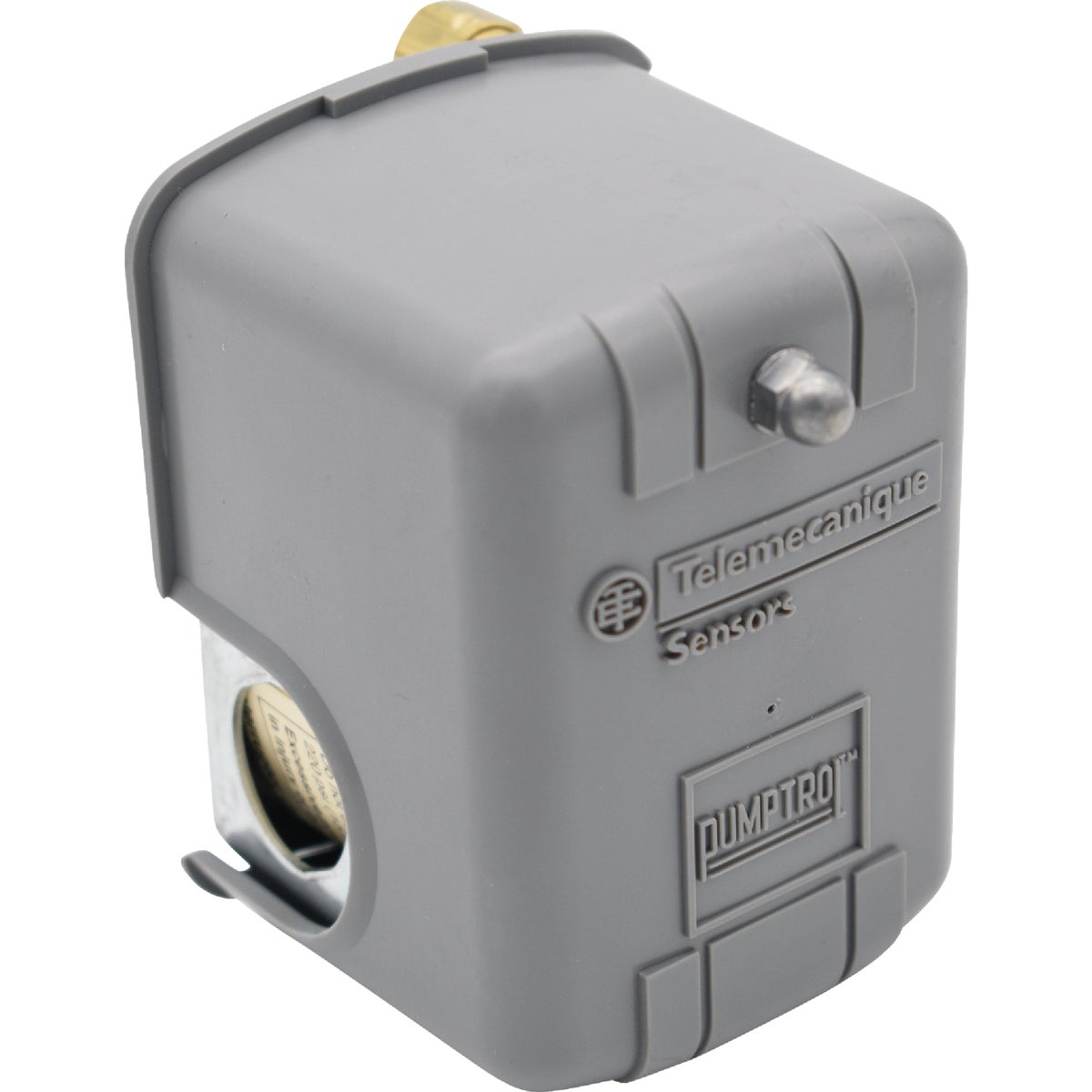

Telemechanique Sensors 2-Way Valve FHG Compressor Pressure Switch
The Telemechanique Sensors 2-Way Valve FHG Compressor Pressure Switch by Telemechanique Sensors is a Pressure Switch product. Available for delivery and in-store pickup at Family Hardware in Cape Coral and Fort Myers, FL.
Estimated subtotal
$42.99
Secure checkout
Easy returns
Shipping Costs
Ships via FedEx
When Will My Order Arrive?
Orders before 12:30 ET Ship Same Day. Otherwise next Business Day.
Type FHG pressure switches are designed for the control of small electrically driven air compressors. Controls an electrically driven air compressor in a power circuit when the adjustable threshold upon falling is reached and is set to turn off at 125 psi. The switch has screw terminal electrical connections and two 2-pole NC contacts open on rising pressure. The non-adjustable differential is 30 psi and the adjustable cut-out range is 70 psi to 150 psi. The switch has a 1/4 In. NPSF internal fluid connection and is suitable for use with a lower-horsepower motor with 1.5 HP or less.
