Who makes Planerhead CentroPlan Integral HW:125x166x40,Z2+2?

Planerhead CentroPlan Integral HW:125x166x40,Z2+2 is made by Leitz. Family Hardware is an authorized retailer carrying a full selection of Leitz products.

Is Planerhead CentroPlan Integral HW:125x166x40,Z2+2 available for in-store pickup?

Yes, this product is available for free in-store pickup at our Cape Coral (622 SE 47th Terrace) and Fort Myers (13101 McGregor Blvd) locations. Orders are typically ready within 2 hours.

What is the return policy for Planerhead CentroPlan Integral HW:125x166x40,Z2+2?

Family Hardware offers a 30-day return policy. Items must be in original condition with receipt. Free returns on defective items.

Does Family Hardware ship Leitz tooling nationwide?

Yes. We ship the full Leitz catalog nationwide, and you can also pick up in-store at our Cape Coral or Fort Myers, FL locations. Many Leitz professional tools are hard to find online — we make them easy to order.

How do I make sure this Leitz tool fits my machine?

Match the mounting (bore, shank, or HSK/hydro interface), confirm the maximum speed rating (n max / MAN) against your spindle speed, and order the correct rotation/hand (RL or LL) where applicable. Our team can verify the exact fit for your machine — just contact us with your model.

Should I choose carbide (HW) or diamond (DP) Leitz tooling?

HW tungsten carbide is versatile and resharpenable — ideal for solid wood and shorter runs. DP polycrystalline diamond costs more up front but lasts up to 100× longer on abrasive coated board, MDF, and composites, giving the lowest cost-per-cut on high-volume production.

Loading Breadcrumbs...

Click to View Full Size

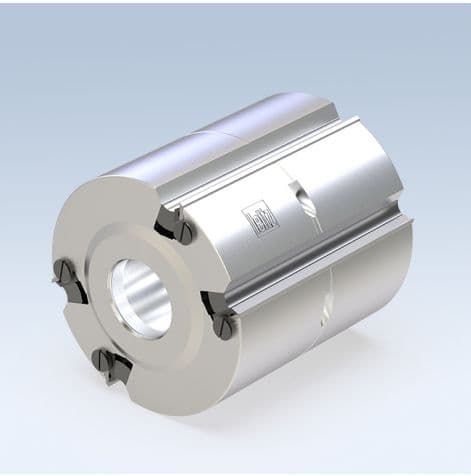

Planerhead CentroPlan Integral HW:125x166x40,Z2+2

Name: Planerhead Centroplan Integral Hw:125x166x40,z2+2
Brand: Leitz
SKU: L134701
Price: 1710.30 USD
Availability: InStock

In stock

FREE Shipping

30-day returns

SKU: L134701

MPN: 134701

Brand: Leitz

The Planerhead CentroPlan Integral HW:125x166x40,Z2+2 by Leitz is a Planer & Jointer Knife product. Available for delivery and in-store pickup at Family Hardware in Cape Coral and Fort Myers, FL.

$1,710.30

Ship to Home

10 available

Ship to Store

10 available

Max Available: 10

Estimated subtotal

$1,710.30

Secure checkout

Free shipping

Easy returns

Shipping Costs

This item ships FREE.

Orders before 12:30 ET Ship Same Day. Otherwise next Business Day.

Description

CentroPlan Integral planerhead Planerhead CentroPlan Integral HW:125x166x40,Z2+2 Application: For pre-planing on machines with two processing spindles. For pre- and finish planing on one processing spindle. Machine: Four-side planing and profiling moulders. Workpiece material: Softwood and hardwood with knots and fibre structure difficult to machine. Centrifugal-supported and form-fitting knife clamping system with turnblades. Light metal tool body. Tool with two CentroPlan ripple knives and two straight CentroPlan planing knives. Unequally pitched cutting arrangement for optimum chip formation.

Authorized Leitz Dealer

Precision since 1876

Genuine Leitz Tooling from Family Hardware

4,600+ Leitz precision tools available — expert help on bore, speed rating, and cutting materials. In-store pickup in SW Florida or shipped nationwide.

Shop all Leitz

Leitz Planer & Jointer Knives: Buying Guide

Replacement knives and helical planing heads (HeliPlan, HeliCut, and the Powerknife PKS system) for surfacing and thicknessing solid wood and panels. Helical designs deliver an almost mark-free finish with quieter cutting and efficient chip removal.

How to Choose

Match the knife length × width × thickness exactly to your cutterhead (e.g. 230 × 40 × 10 mm).
Choose the cutting material: HW (tungsten carbide) for long life, HS (steel) for the keenest resharpenable edge, or DP (diamond) for abrasive board.
Decide between disposable/reversible knives and resharpenable knives based on your run length.
Confirm the knife count and backing-plate style for your head before ordering.

Specs to Check

Length × Width × Thickness

Material: HW / HS / DP

Knife count (Z)

Backing plate / PKS

Best for planers, jointers, and moulder planing heads on single- or double-sided machines.

Genuine & Authorized

Real Leitz tooling with full factory catalog access.

Tooling Expertise

We spec by bore, hook angle, MAN speed & material.

Sharpening & Service

Professional resharpening keeps tools cutting like new.
