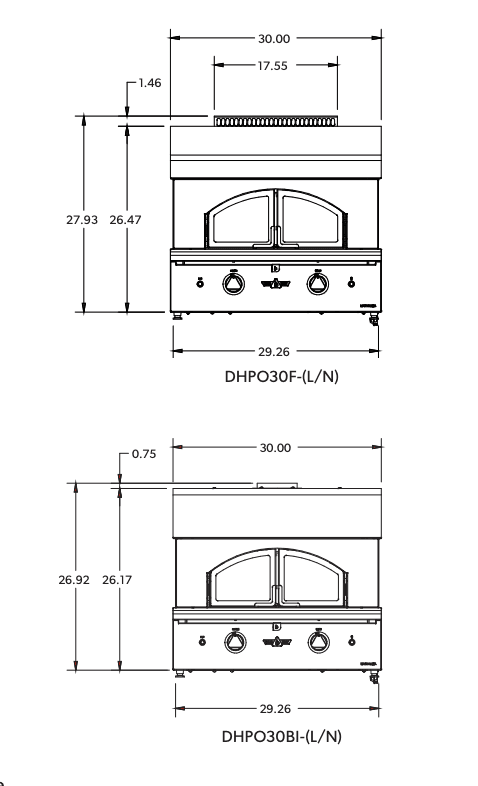

Pizza Ovens

Accessories

Built-In Premier Grills

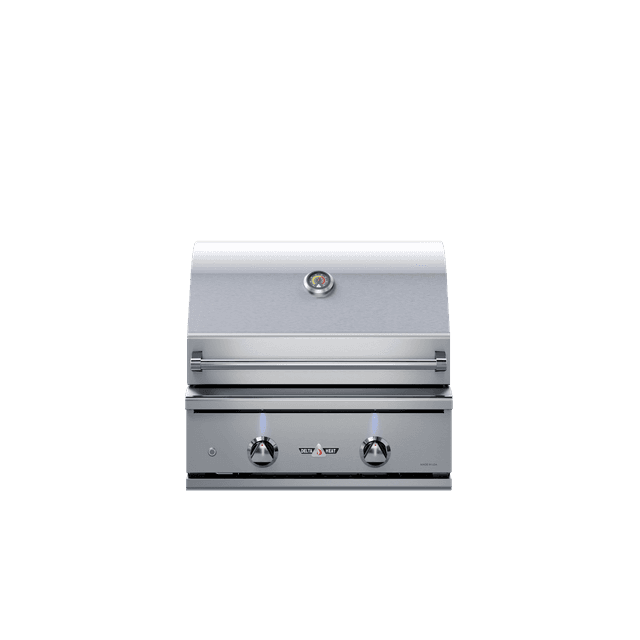

26" Outdoor Gas Grill

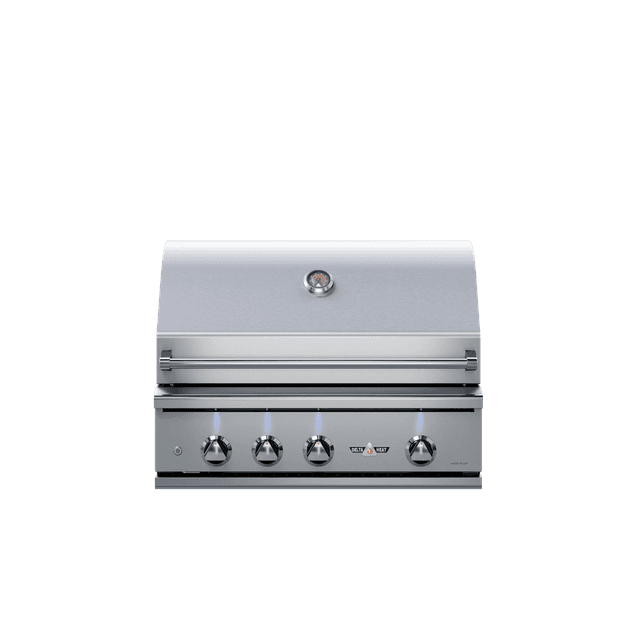

32" Outdoor Gas Grill

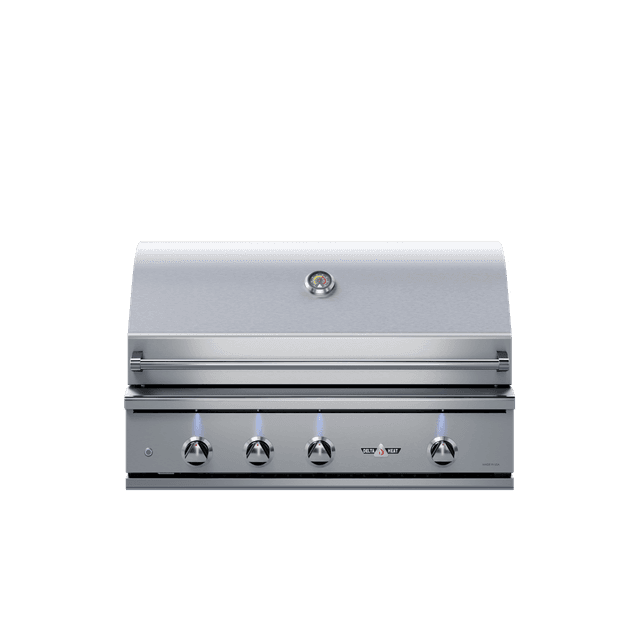

38" Outdoor Gas Grill

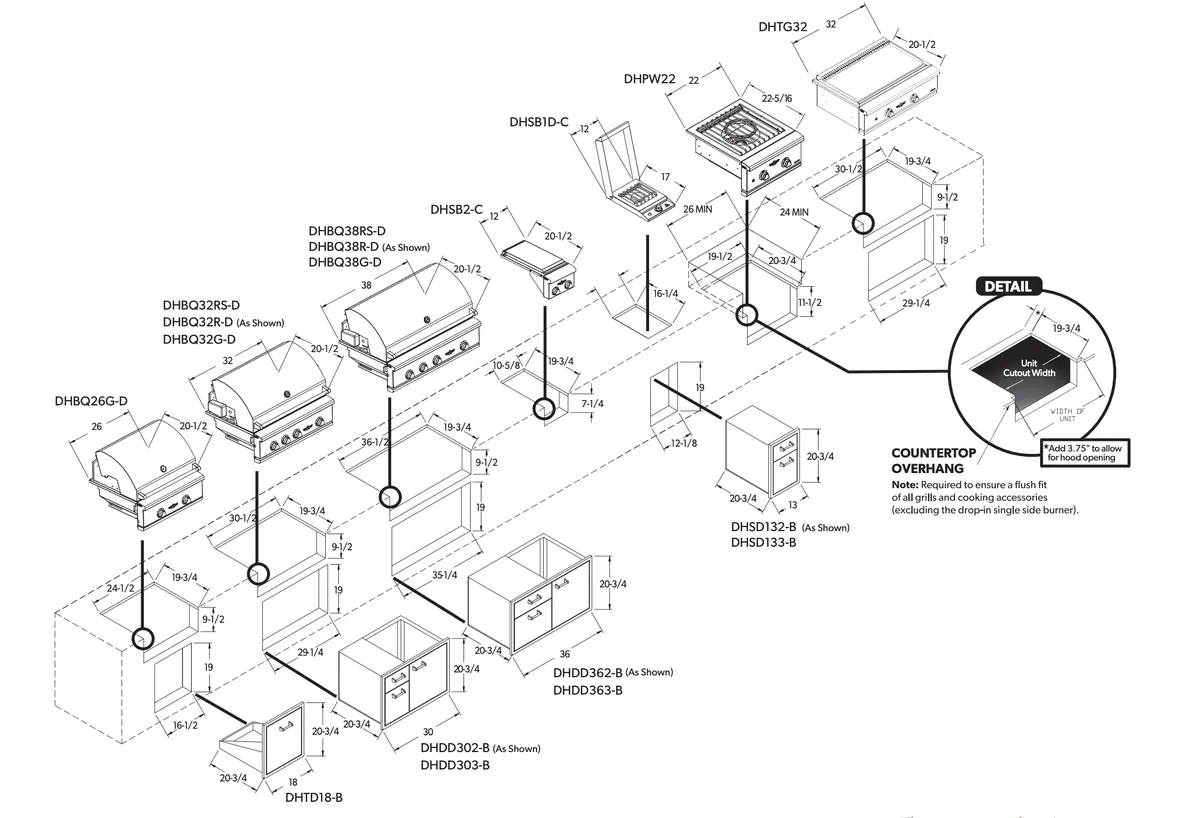

Cutout Dimensions

Allow minimum of 3” clearance from the grill’s rear edge (3.75” from cutout) to the backsplash to allow hood to fully open.

Rotisserie Motor can be installed either on the right hand side or left hand side.

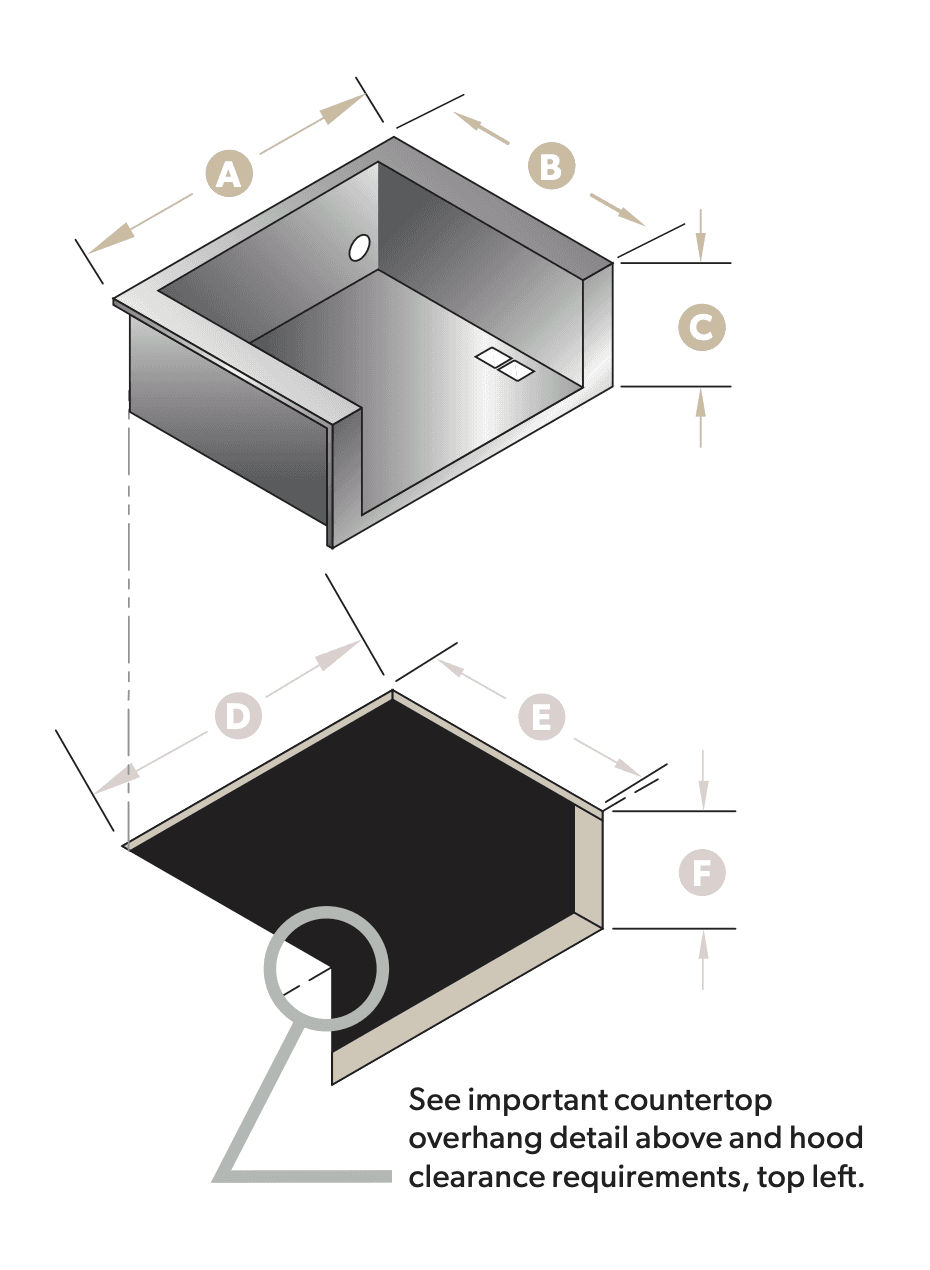

INSULATING JACKETS

Stainless steel construction
Polished stainless steel trim
For installation in combustible construction

MODEL NUMBER

OVERALL DIMENSIONS

WIDTH

DEPTH

HEIGHT

CUTOUT DIMENSIONS

WIDTH

DEPTH

HEIGHT

DHIJ22

25-7/8“

23-1/2“

13“

24“

22-1/2“

12-1/2“

DHIJ26

30-7/8“

22-1/4“

11“

29“

21-1/2“

10-1/2“

DHIJ32

36-7/8“

22-1/4“

11“

35“

21-1/2“

10-1/2“

DHIJ38

42-7/8“

22-1/4“

11“

41“

21-1/2“

10-1/2“

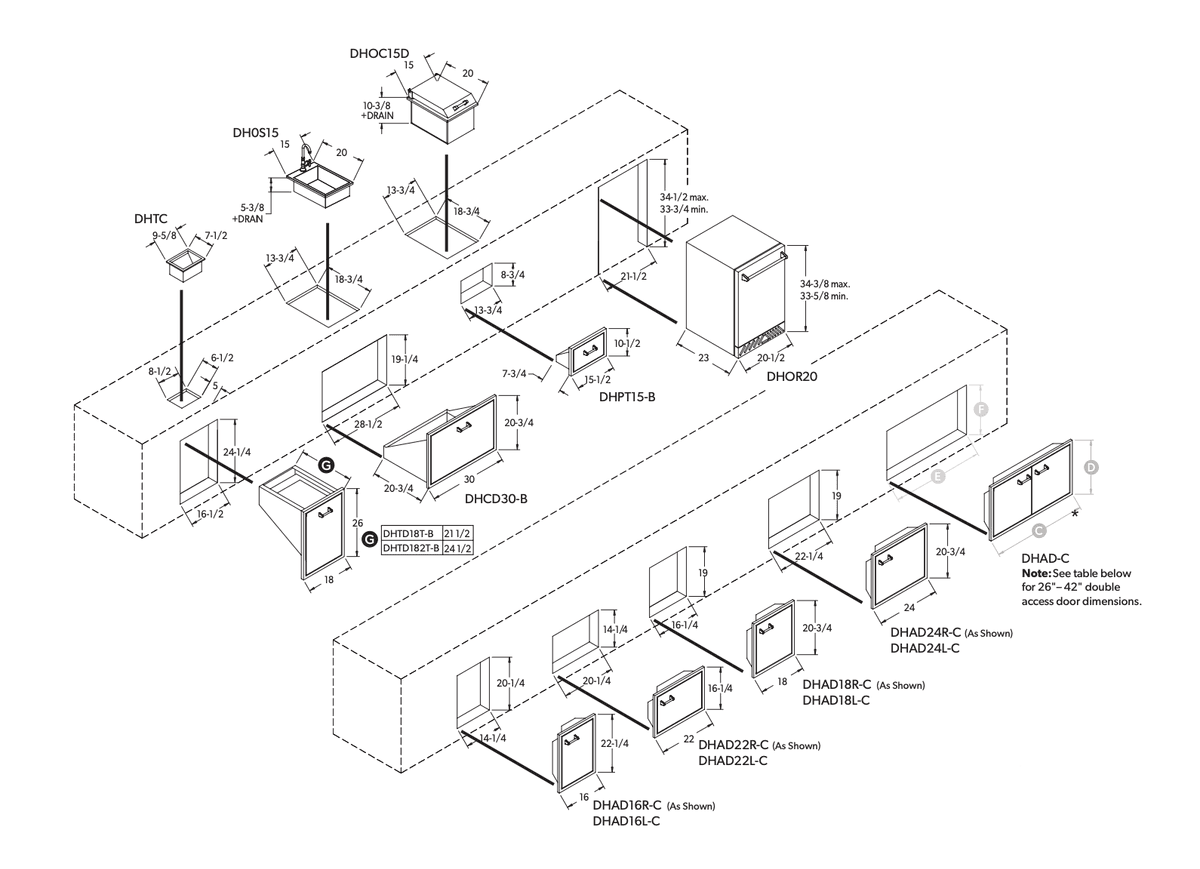

*DHAD-C – DOUBLE ACCESS DOORS

MODEL NUMBER

OVERALL DIMENSIONS

WIDTH

HEIGHT

CUTOUT DIMENSIONS

WIDTH

HEIGHT

DHAD26-C

20 3/4

24 1/4

DHAD30-C

20 3/4

28 1/4

DHAD32-C

20 3/4

30 1/4

DHAD36-C

20 3/4

34 1/4

DHAD38-C

20 3/4

36 1/4

DHAD42-C

20 3/4

40 1/4

Dometic Delta Heat reserves the right to change the specifications, designs and materials of the products without notice. Please verify the specifications prior to finalizing your enclosures.
