Who makes Planerhead HeliPlan HW/D125/NL166/HSK 85 WS/Z2/2?

Planerhead HeliPlan HW/D125/NL166/HSK 85 WS/Z2/2 is made by Leitz. Family Hardware is an authorized retailer carrying a full selection of Leitz products.

Is Planerhead HeliPlan HW/D125/NL166/HSK 85 WS/Z2/2 available for in-store pickup?

Yes, this product is available for free in-store pickup at our Cape Coral (622 SE 47th Terrace) and Fort Myers (13101 McGregor Blvd) locations. Orders are typically ready within 2 hours.

What is the return policy for Planerhead HeliPlan HW/D125/NL166/HSK 85 WS/Z2/2?

Family Hardware offers a 30-day return policy. Items must be in original condition with receipt. Free returns on defective items.

Does Family Hardware ship Leitz tooling nationwide?

Yes. We ship the full Leitz catalog nationwide, and you can also pick up in-store at our Cape Coral or Fort Myers, FL locations. Many Leitz professional tools are hard to find online — we make them easy to order.

How do I make sure this Leitz tool fits my machine?

Match the mounting (bore, shank, or HSK/hydro interface), confirm the maximum speed rating (n max / MAN) against your spindle speed, and order the correct rotation/hand (RL or LL) where applicable. Our team can verify the exact fit for your machine — just contact us with your model.

Should I choose carbide (HW) or diamond (DP) Leitz tooling?

HW tungsten carbide is versatile and resharpenable — ideal for solid wood and shorter runs. DP polycrystalline diamond costs more up front but lasts up to 100× longer on abrasive coated board, MDF, and composites, giving the lowest cost-per-cut on high-volume production.

Loading Breadcrumbs...

Click to View Full Size

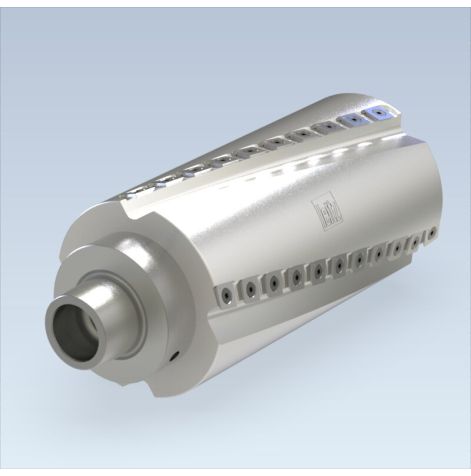

Planerhead HeliPlan HW/D125/NL166/HSK 85 WS/Z2/2

Name: Planerhead Heliplan Hw/d125/nl166/hsk 85 Ws/z2/2
Brand: Leitz
SKU: L132022
Price: 1686.00 USD
Availability: InStock

In stock

FREE Shipping

30-day returns

SKU: L132022

MPN: 132022

Brand: Leitz

The Planerhead HeliPlan HW/D125/NL166/HSK 85 WS/Z2/2 by Leitz is a Planer & Jointer Knife product. Available for delivery and in-store pickup at Family Hardware in Cape Coral and Fort Myers, FL.

$1,686

Ship to Home

10 available

Ship to Store

10 available

Max Available: 10

Estimated subtotal

$1,686.00

Secure checkout

Free shipping

Easy returns

Shipping Costs

This item ships FREE.

Orders before 12:30 ET Ship Same Day. Otherwise next Business Day.

Description

HeliPlan planerhead - HSK 85 WS Planerhead HeliPlan HW/D125/NL166/HSK 85 WS/Z2/2 Application: Pre-planing, surfacing and jointing all types of wood with large chip removal. Also suitable for finish planing if quality demands are less important or in combination with subsequent sanding. Machine: Four-sided moulders with HSK 85 WS interfaces. Workpiece material: Softwood and hardwood. Pre-planing cutterhead with 4 edge HW turnblade knives. Low noise and energy efficient due to spiral, segmented edge arrangement. Smooth finish through radiused cutting edges. Aluminium tool body. Tool and HSK are shrink-fit together. Optional steel reference cutterhead for machines with fence.

Authorized Leitz Dealer

Precision since 1876

Genuine Leitz Tooling from Family Hardware

4,600+ Leitz precision tools available — expert help on bore, speed rating, and cutting materials. In-store pickup in SW Florida or shipped nationwide.

Shop all Leitz

Leitz Planer & Jointer Knives: Buying Guide

Replacement knives and helical planing heads (HeliPlan, HeliCut, and the Powerknife PKS system) for surfacing and thicknessing solid wood and panels. Helical designs deliver an almost mark-free finish with quieter cutting and efficient chip removal.

How to Choose

Match the knife length × width × thickness exactly to your cutterhead (e.g. 230 × 40 × 10 mm).
Choose the cutting material: HW (tungsten carbide) for long life, HS (steel) for the keenest resharpenable edge, or DP (diamond) for abrasive board.
Decide between disposable/reversible knives and resharpenable knives based on your run length.
Confirm the knife count and backing-plate style for your head before ordering.

Specs to Check

Length × Width × Thickness

Material: HW / HS / DP

Knife count (Z)

Backing plate / PKS

Best for planers, jointers, and moulder planing heads on single- or double-sided machines.

Genuine & Authorized

Real Leitz tooling with full factory catalog access.

Tooling Expertise

We spec by bore, hook angle, MAN speed & material.

Sharpening & Service

Professional resharpening keeps tools cutting like new.
