About this product

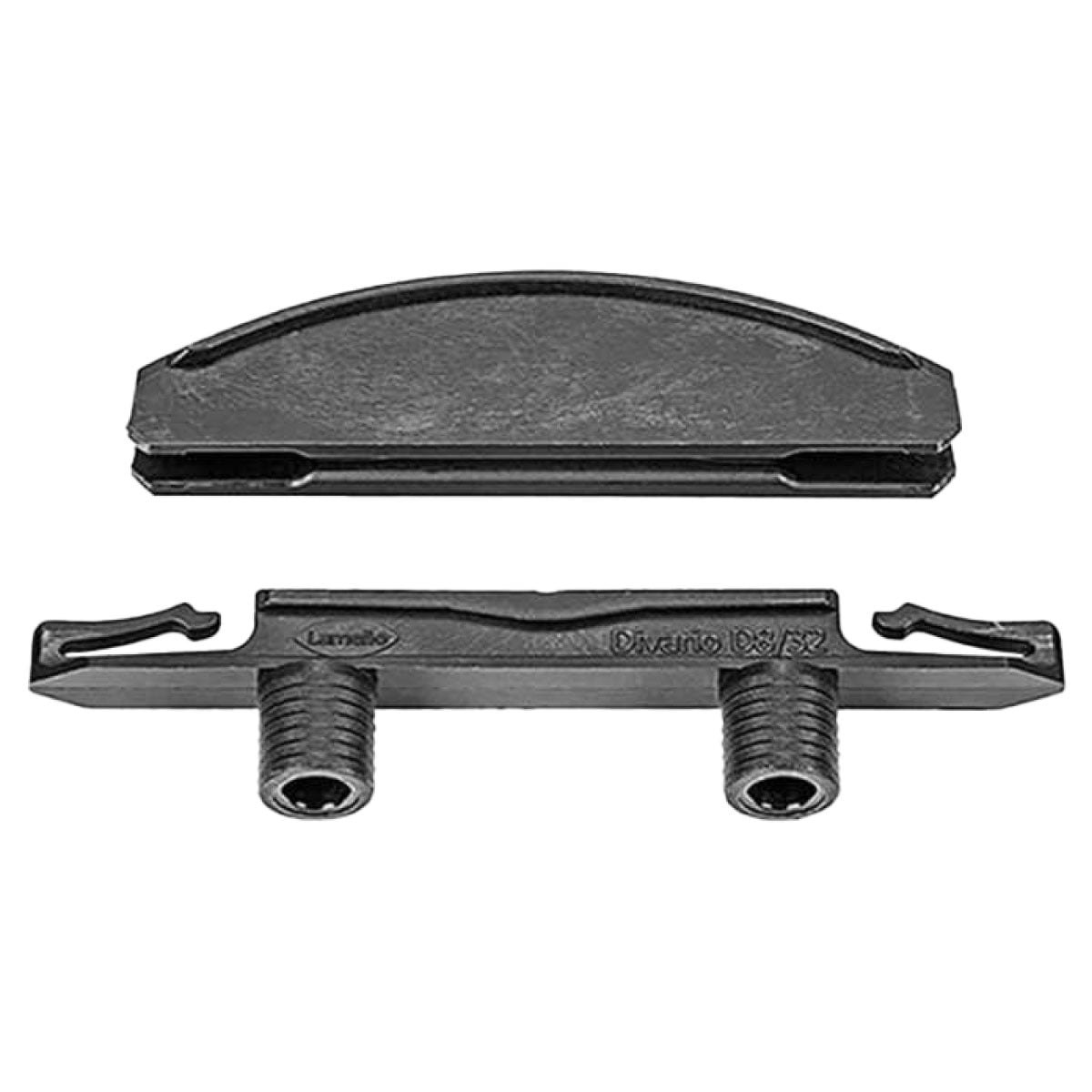

Divario P-18
With Divario, shelves or dividing walls can be inserted into pre-assembled structures. The Divario P-18 clamps the components during insertion, creating clean, tight joints; the clamping action occurs only at certain points rather than across the whole insertion length, so parts slide in easily and then lock. The strong connection carries high tensile forces, giving you design flexibility without sacrificing stability.
Neither clamping aids nor adhesive are required, so components can be assembled at the most cost-effective stage — production, storage, transport or on site — and the fitting is detachable for transportation. Shelves need a minimum thickness of 19 mm (3/4").
Cut the P-System groove on a CNC or by hand with the Zeta P2 / Zeta P2 Cordless at depth setting 18, drill the 8 mm hole with the Divario marking jig, and seat the connector with the Divario installation tool.
Highlights
Completely invisible joint for the highest quality standards
Joins and clamps during insertion for perfectly closed joints
No resistance while inserting until shortly before the clamping force builds
Insert shelves after transport for lower transport weight
High tensile strength; no clamps necessary
Hand or mallet installation
Narrow element for shelves from 19 mm
