Clamex P-14/10 Flexus Connector with Flexible Positioning Pins
Slide-and-snap assembly for hard-to-reach joints — fixed shelves, tilt-in panels
Works like a Clamex P-14/10 Medius, but flexible positioning pins retract until they find their mating half, so parts can be slid or tilted into place.
$175
art. no. 145315 · 1.9 lb
Authorized dealer · ships from Lamello USA stock — typically within a few business days
Pack size
Quantity
Need more than 10? Request a shop quote.
Clamex P-14/10 Flexus — 80 pairs × 1
$175
Shipping (contiguous U.S.)
Free
Total before tax
$175
Free parcel shipping on orders of $99 or more; $9.95 below that. Sales tax calculated at checkout.
Prices are Lamello USA minimum advertised pricing effective September 2026. Cabinet shops, installers and commercial accounts: request a quote for volume pricing, CNC tooling and anything in the Lamello catalog not shown here.
About this product
Clamex P-14/10 Flexus
Lamello's Flexus version of the Clamex P-14/10 connector replaces the rigid torsion tabs of the standard Clamex with flexible positioning pins. The pins retract until they find their mating half, so work-piece components can be slid and snapped into place — which makes some of the most challenging assemblies possible, such as fitting a fixed shelf into an already-assembled carcass or tilting a panel into a recess.
The pins are rigid enough to align the work piece and hold it in position before the cam lock is engaged, and their beveled shape allows easy installation and removal in tilt-in scenarios. Flexus is packaged with the 14 mm lever half and the 10 mm Medius receiving half, but the lever half may also be used with Clamex P-14 and Clamex P-10 receivers.
Cut the groove at Zeta P2 depth setting 14 for the cam-lock half and 10 for the receiving half.
Highlights
Flexible positioning pins allow a wide variety of installation options
Minimal installation depth for material as thin as 13 mm (1/2") on surface or corner joints
Detachable miter connector for 30–180° angles in material from 19 mm (3/4")
Nearly invisible 6 mm tool opening
Fast, tool-free installation of connectors
Stackable for transport with connectors pre-installed
Specifications
| Article no. | 145315 — 80 pairs · 145316 — 300 pairs · 145317 — 1000 pairs |
|---|---|
| GTIN / EAN | 7640149938371 |
| Shipping weight | 1.9 lb |
| Size | 64 × 13.5 × 9.7 mm |
| Shell / lever | Fiberglass-reinforced plastic / zinc die-cast |
| Installation depth | 14 mm cam-lock half · 10 mm receiving half |
| Installation tolerance | Longitudinal ± 0 mm |
| Tensile strength | Particle board ~132 lb · MDF ~158 lb · beech ~178 lb |
| Shear strength | Particle board ~101 lb · MDF ~105 lb · beech ~242 lb |
| Clamping force | ~90 lb |

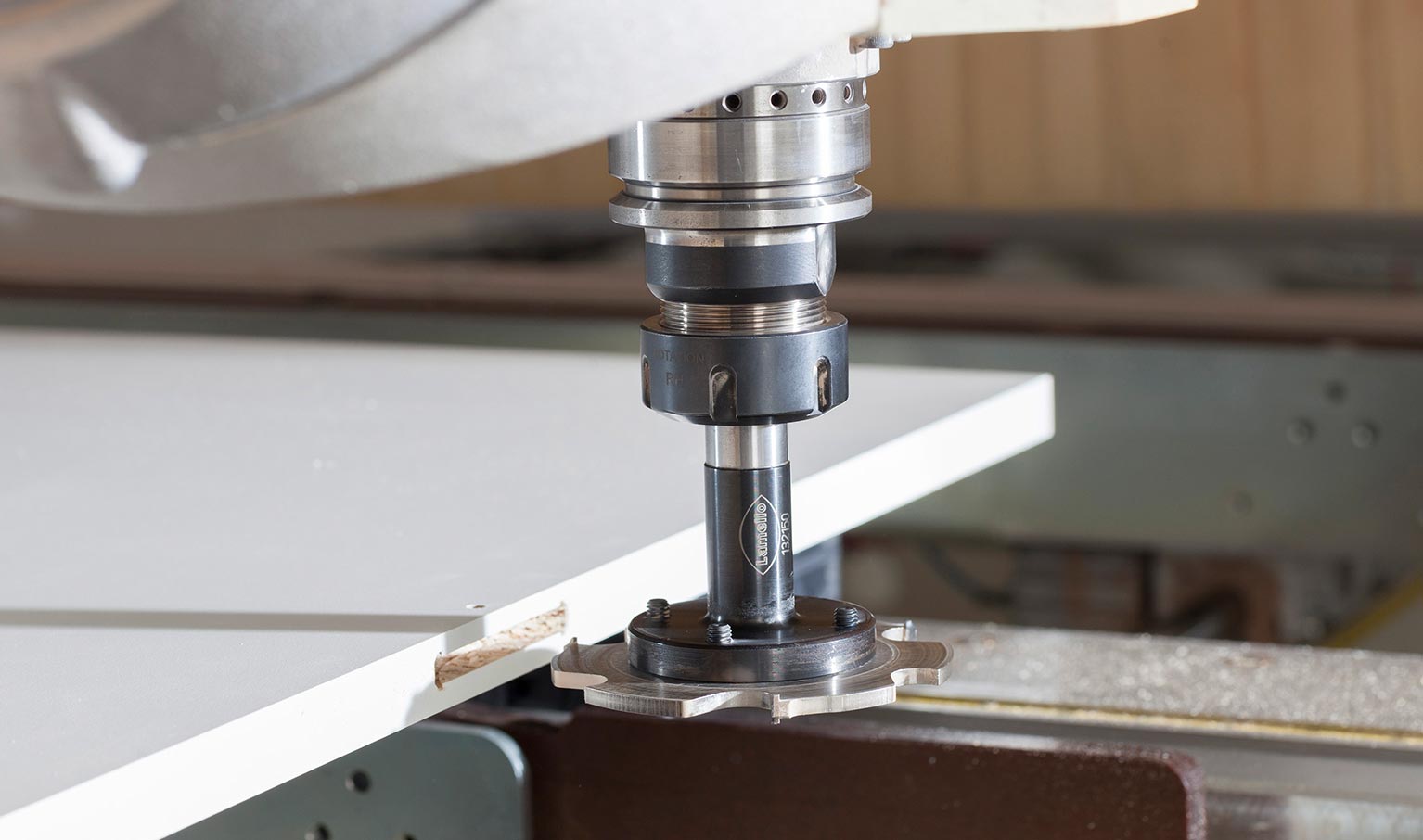

| Cutter | Ø 100.4 × 7 × 22 mm P-System |
| Brand | Lamello AG, Bubendorf, Switzerland · distributed by Lamello USA (Colonial Saw) |
Documents
- Tips & tricks: subsequent installation of fixed shelves with Flexus (PDF)
- Tips & tricks: drill the 6 mm Clamex P access hole (PDF)
- Lamello USA brochure 2025/2026 (PDF)
Prices are Lamello USA minimum advertised pricing effective September 2026. Specifications from Lamello; strength values are Lamello test figures and vary with material.
Goes with it
Pair with the Clamex P-14/10 Flexus
Clamex P-14/10 Flexus questions
Frequently Asked Questions
Is the Lamello Clamex P-14/10 Flexus in stock?
Yes — the Clamex P-14/10 Flexus ships from Lamello USA / Family Hardware stock, typically within a few business days, by parcel anywhere in the contiguous U.S. (free on orders of $99 or more) or for pickup in Cape Coral or Fort Myers. Larger quantities for production shops are quoted with a confirmed lead time.
How much does the Clamex P-14/10 Flexus cost?
80 pairs (145315) is $175; 300 pairs (145316) is $610; 1000 pairs (145317) is $1,825. These are Lamello USA minimum advertised prices effective September 2026; request a quote for shop or volume pricing.
What do I need to install Clamex P-14/10 Flexus?

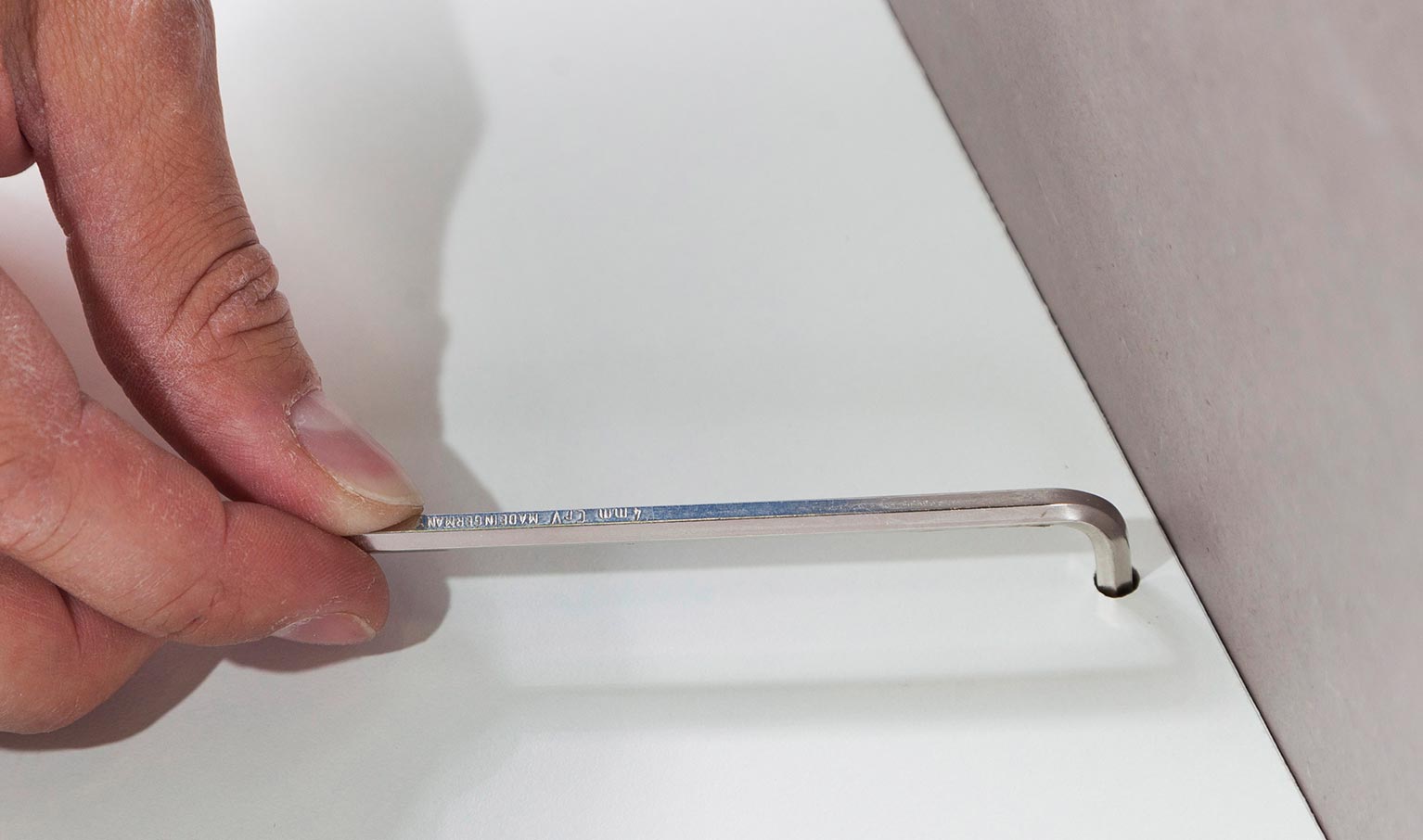

A Lamello Zeta P2 or Zeta P2 Cordless set to P-System depth 14 + 10, or a CNC with the P-System cutter, in material from 13 mm (1/2"). The connector pushes into the groove by hand — no glue or screws to anchor it. Lock the cam with a 4 mm hex key through the 6 mm access hole; the Clamex P flexible fitting tool reaches inside carcasses.
