Challenger Designs — Canyon Series
Doors & drawers for your built-in island.
Weatherproof powder-coated aluminum door, drawer and access units made to install into masonry, stone and framed outdoor islands. Pick your units and options below, send us your selections, and our outdoor kitchen team will follow up to finalize pricing, freight and your order.
Prefer to talk it through? Call 239-443-4360 for a free design consultation.
Tailored to your style
Colors & Door Styles
Cabinet Color
Anthracite
Cappuccino
Textured Grey Glimmer
Speckled Walnut
Textured White
Textured Black
Sandy Shore
Graphite
Custom colors available upon request — mention it in your request notes.
Door Style
Pan
Shaker
Ribbed Shaker
Shaker and Ribbed Shaker fronts carry the shaker price. The 4 Drawer Cabinet and trim kits are pan-style regardless of door style.
Handles
Stainless Steel
Black
Bronze
The Canyon catalog
Pick Your Units

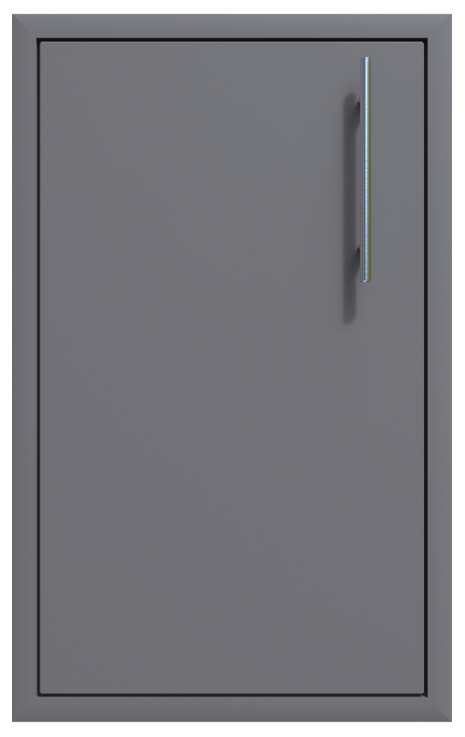

Single Door
CAN001-F01
The essential island access door, in full-enclosure or door-and-frame form.
1 door (LH or RH) · Full-width adjustable shelf in full enclosure
18" × 29"
Right hinge
Cutout: 16.5"W × 27.5"H × 22.5"D
$712

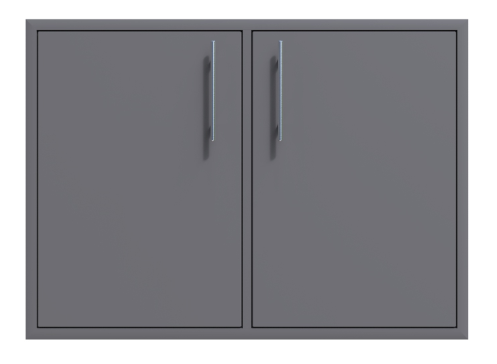

Double Door
CAN008-F01
Wide two-door access for under-counter storage.
2 doors (LH/RH) · Full-width adjustable shelf in full enclosure
30" × 29"
Cutout: 28.5"W × 27.5"H × 22.5"D
$1,067

Under Grill Access
CAN007-F01
Low-profile double doors sized to fit beneath a built-in grill.
2 doors (LH/RH) · 18" tall to clear grill cutouts
30" × 18"
Cutout: 28.5"W × 16.5"H × 22.5"D
$818

Single Combo (Drawer + Door)
CAN002-F01
A 5.25"H drawer over a single access door.
Full enclosure · 1 drawer: 5.25"H · 1 door (LH or RH) · Full-width adjustable shelf
18" × 29"
Right hinge
Cutout: 16.5"W × 27.5"H × 22.5"D
$977

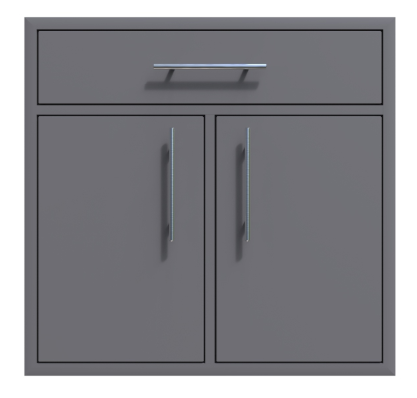

Double Combo (Drawer + Doors)
CAN009-F01
Drawer storage over double doors — 36" and 40" carry two drawers.
Full enclosure · Drawers: 5.25"H · 2 doors (LH/RH) · Full-width adjustable shelf
30" × 29"
Cutout: 28.5"W × 27.5"H × 22.5"D
$1,384

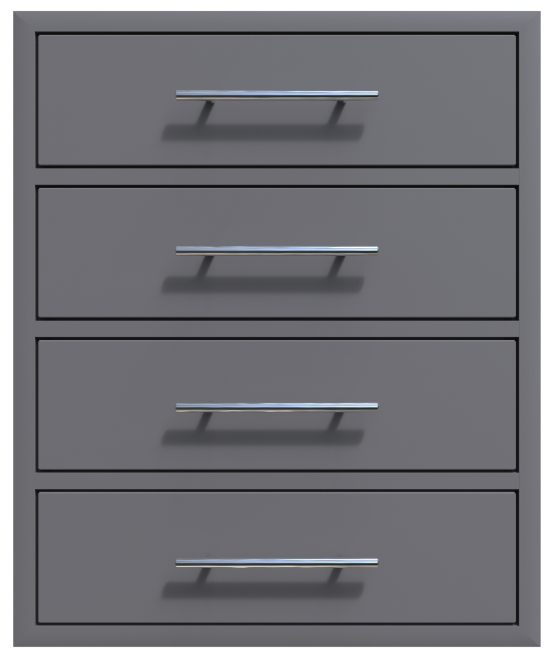

4 Drawer Cabinet
CAN003-F01 · pan front only
A full stack of sealed drawer storage for tools and grill gear.
Full enclosure · 4 drawers · Pan style only
18" × 29"
Cutout: 16.5"W × 27.5"H × 22.5"D
$1,362

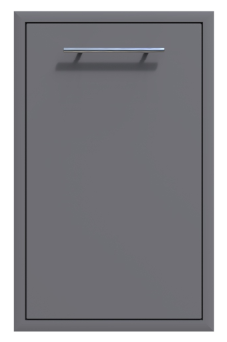

Waste Bin Pull Out
CAN001-F04
A pull-out tray with a single waste bin behind a full-height door.
Full enclosure · Single waste bin tray · 1 pull-out tray
18" × 29"
Cutout: 16.5"W × 27.5"H × 22.5"D
$923

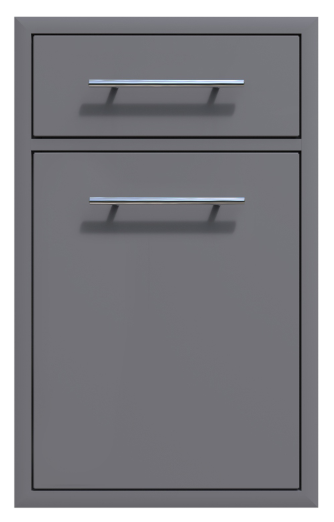

Waste Bin Pull Out w/ Drawer
CAN017-F04
The waste bin pull-out with a storage drawer above.
Full enclosure · Single waste bin tray · 1 drawer: 5.25"H · 1 pull-out tray
18" × 29"
Cutout: 16.5"W × 27.5"H × 22.5"D
$1,264

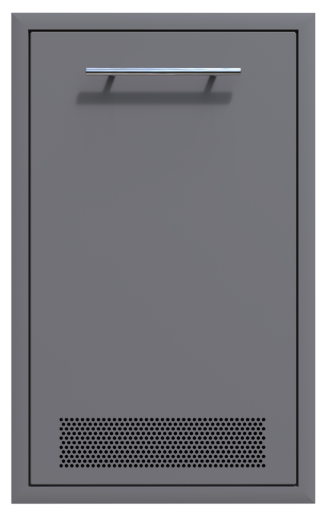

LP Tank Pull Out
CAN001-F03
A vented, pull-out propane tank tray that keeps your LP cylinder accessible.
Full enclosure · 1 pull-out tray · Vented
18" × 29"
Cutout: 16.5"W × 27.5"H × 22.5"D
$1,043

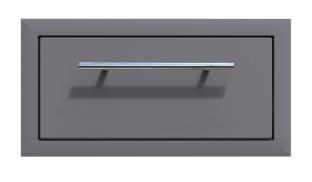

Paper Towel Holder
CAN016-F01BH
A built-in drop-front holder that keeps paper towels dry and at hand.
Full enclosure
16" × 11"
Cutout: 14.5"W × 9.5"H × 8"D
$287
Your Selections
Start picking
Add doors and drawers from the catalog.
Estimated MSRP
$0
Freight quoted separately. Submit your selections and we’ll follow up to confirm sizes, finish and final pricing before anything is ordered — no payment is taken online.
Planning your island
Sizing & Installation Notes
Cutouts run 1.5″ smaller
Canyon faces overlap the island opening — your rough cutout is 1.5″ narrower and shorter than the unit’s face dimensions. Each card above shows the cutout for the size you’ve selected.
Full enclosure vs. frame only
Full-enclosure units include a sealed 22.5″-deep storage body. Door & frame only units are a 4″ deep face for openings where the island itself is the storage.
Trim kits for uneven surfaces
Installing into stone, stacked block or other uneven facings? Add the matching trim kit to any unit for a clean, finished reveal.
Weatherproof by design
Powder-coated aluminum that won’t warp, rust or rot, with sealed weather-resistant doors and drawers.
A proof-of-concept ordering flow
Submit your selections online and a real person follows up to finalize everything — nothing is charged until you approve your order.
Made in Indiana
Built by Challenger Designs in Nappanee, Indiana and backed by a limited lifetime warranty.
Good to know
Frequently Asked Questions
What is the Challenger Designs Canyon Series?
The Canyon Series is Challenger Designs’ line of built-in door, drawer and access units for masonry, stone, stucco and framed outdoor kitchen islands. Like all Challenger products, they are powder-coated aluminum — they will not rust, warp or rot — and they are made in Nappanee, Indiana.
What size cutout do I need for a Canyon door or drawer unit?
Canyon faces overlap the island opening, so your rough cutout is 1.5 inches narrower and shorter than the unit’s face dimensions — an 18" × 29" single door needs a 16.5" × 27.5" opening. Full-enclosure units need 22.5 inches of clear depth; door-and-frame-only units need just 4 inches.
What is the difference between full enclosure and door & frame only?
Full-enclosure units include a sealed 22.5-inch-deep storage body, so contents stay dry inside the island. Door-and-frame-only units are a 4-inch-deep finished face for openings where the island cavity itself is the storage — at a lower price.
What Canyon units are available?
Single doors (18" and 24"), double doors (30"–40"), under-grill access doors (30"–40"), drawer-over-door combos, 4-drawer cabinets, waste bin pull-outs with or without a drawer, a vented LP tank pull-out, and a built-in paper towel holder — plus trim kits for uneven stone surfaces, in three door styles and eight powder-coat colors.
How do I order Canyon Series doors and drawers?
Pick your units, sizes and finishes on this page and submit your selections — no payment is taken online. Our outdoor kitchen team follows up within one business day to confirm sizing, quote freight and finalize your order. Prefer to talk first? Call 239-443-4360.
Do I need trim kits?
Trim kits are recommended when installing into stone, stacked block or other uneven facings — they give the unit a clean, finished reveal against the rough surface. A matching trim kit is available for every Canyon size.
