Lamello Clamex P-10 Detachable Connector for Thin Material

Authorized dealer

P-System connector

Zeta depth 10

Lamello · art. 145372

Clamex P-10 Detachable Connector for Thin Material

Name: Lamello Clamex P-10 Detachable Connector for Thin Material
Brand: Lamello
SKU: 145372
Availability: InStock

The Clamex cam lock for material from 12 mm (1/2") — miters from 15 mm

Shallow 10 mm installation depth brings the detachable Clamex joint to 1/2" panels, drawer boxes and crown-molding miters.

$175

art. no. 145372

Authorized dealer · ships from Lamello USA stock — typically within a few business days

Pack size

80 pairs · 145372 · $175

300 pairs · 145373 · $610

1000 pairs · 145374 · $1,825

Quantity

Need more than 10? Request a shop quote.

Clamex P-10 — 80 pairs × 1

$175

Shipping (contiguous U.S.)

Free

Total before tax

$175

Free parcel shipping on orders of $99 or more; $9.95 below that. Sales tax calculated at checkout.

Call 239-443-4360

Prices are Lamello USA minimum advertised pricing effective September 2026. Cabinet shops, installers and commercial accounts: request a quote for volume pricing, CNC tooling and anything in the Lamello catalog not shown here.

About this product

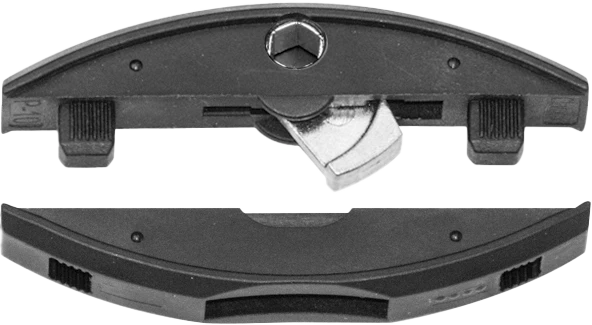

Clamex P-10

Clamex P-10 is a detachable, two-part connector with an internal cam lock engaged with a lever. Compared with Clamex P-14 it has a shallower installation depth of just 10 mm, so it can be used in thinner material: butt and surface joints from 12–13 mm (1/2") and miters from 15 mm (9/16"). Two torsion tabs give the connector strong dimensional stability.

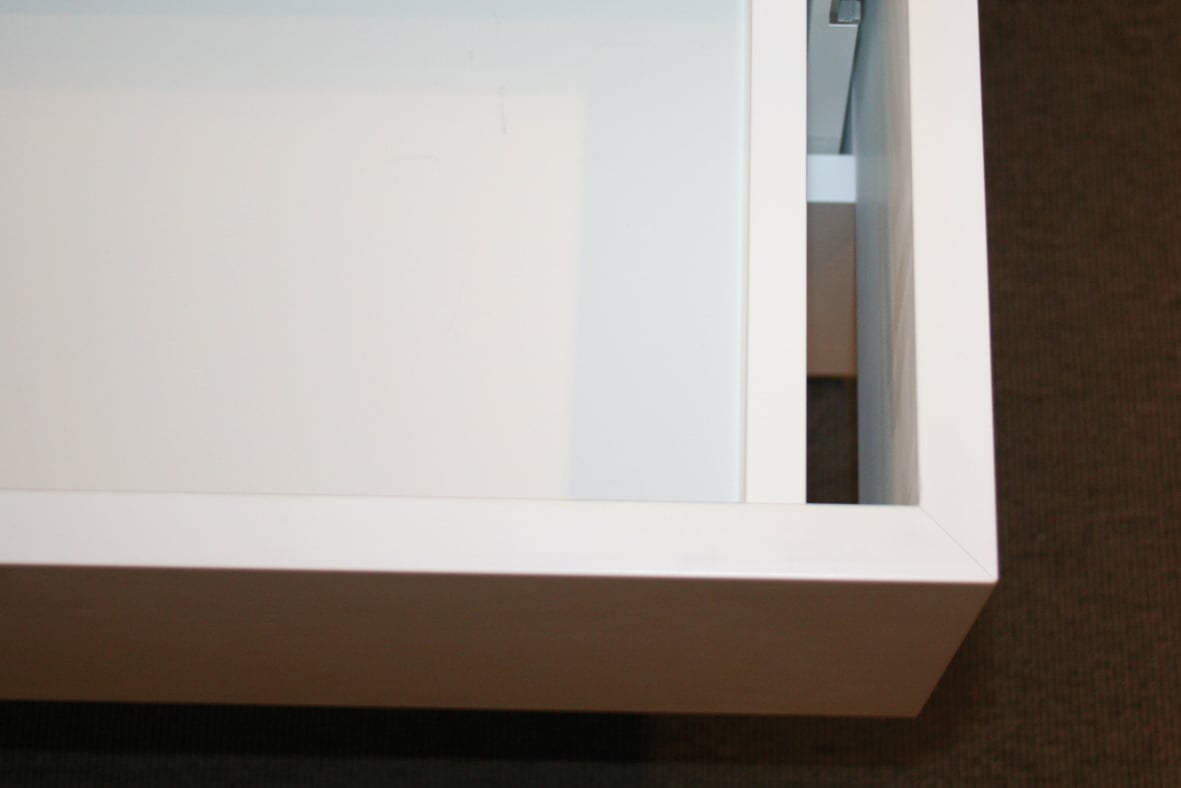

Lamello's form-locking P-System anchors the connector in the work piece in seconds without tools, glue or screws, and the joint stays nearly invisible behind its 6 mm access hole. Clamex P-10 is also a favorite for clamping outside crown-molding miters from 15 mm thick.

Cut the groove with the Zeta P2 at depth setting 10, with the Zeta P2 Cordless, or on a CNC.

Highlights

Minimal installation depth for material as thin as 13 mm (1/2") on surface or corner joints

Detachable miter connector for 30–180° angles in material from 15 mm (9/16")

Nearly invisible 6 mm tool opening

Fast, tool-free installation of connectors

Stackable for transport with connectors pre-installed

High clamping force for gluing components at all angles

Specifications

Article no.	145372 — 80 pairs · 145373 — 300 pairs · 145374 — 1000 pairs
Size	52 × 19 × 9.7 mm
Shell / lever	Fiberglass-reinforced plastic / zinc die-cast
Installation depth	10 mm (Zeta P2 setting 10)
Min. material thickness	12–13 mm (1/2") butt/surface · 15 mm (9/16") miters
Installation tolerance	Longitudinal ± 0.5 mm
Tensile strength	Particle board ~118 lb · MDF ~154 lb · beech ~198 lb
Shear strength	Particle board ~92 lb · MDF ~116 lb · beech ~350 lb
Cutter	Ø 100.4 × 7 × 22 mm P-System
Brand	Lamello AG, Bubendorf, Switzerland · distributed by Lamello USA (Colonial Saw)

Documents

Prices are Lamello USA minimum advertised pricing effective September 2026. Specifications from Lamello; strength values are Lamello test figures and vary with material.

Goes with it

Pair with the Clamex P-10

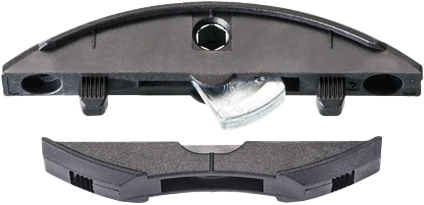

Clamex P-14/10 Medius

from $175

All Lamello Tools & Connectors Call 239-443-4360

Clamex P-10 questions

Frequently Asked Questions

Is the Lamello Clamex P-10 in stock?

Yes — the Clamex P-10 ships from Lamello USA / Family Hardware stock, typically within a few business days, by parcel anywhere in the contiguous U.S. (free on orders of $99 or more) or for pickup in Cape Coral or Fort Myers. Larger quantities for production shops are quoted with a confirmed lead time.

How much does the Clamex P-10 cost?

80 pairs (145372) is $175; 300 pairs (145373) is $610; 1000 pairs (145374) is $1,825. These are Lamello USA minimum advertised prices effective September 2026; request a quote for shop or volume pricing.

What do I need to install Clamex P-10?

A Lamello Zeta P2 or Zeta P2 Cordless set to P-System depth 10, or a CNC with the P-System cutter, in material from 12 mm (1/2"). The connector pushes into the groove by hand — no glue or screws to anchor it. Lock the cam with a 4 mm hex key through the 6 mm access hole; the Clamex P flexible fitting tool reaches inside carcasses.
