Authorized dealer
P-System connector
Zeta depth 14
Lamello · art. 145334
Clamex P-14 Detachable Furniture Connector
The standard P-System connector — nearly invisible, over 200 lb of clamping force, tool-free
Two-part cam-lock connector for material from 16 mm (5/8"). Insert by hand, lock with a hex key through a 6 mm hole — detachable or glued.
$175
art. no. 145334
Authorized dealer · ships from Lamello USA stock — typically within a few business days
Pack size
Quantity
Need more than 10? Request a shop quote.
Clamex P-14 — 80 pairs × 1
$175
Shipping (contiguous U.S.)
Free
Total before tax
$175
Free parcel shipping on orders of $99 or more; $9.95 below that. Sales tax calculated at checkout.
Prices are Lamello USA minimum advertised pricing effective September 2026. Cabinet shops, installers and commercial accounts: request a quote for volume pricing, CNC tooling and anything in the Lamello catalog not shown here.
About this product
Clamex P-14
Clamex P-14 is a detachable, two-part connector with an internal cam lock engaged with a lever. It anchors in the P-System groove in seconds without tools, and needs neither glue nor screws — which is why it has become the standard connector for cabinet shops: a high-quality, nearly invisible joint with high clamping strength, real time savings in production, transport and assembly, and one connector for every angle and joining situation, detachable or glued.
With an installation depth of just 14 mm it works in any material from 16 mm (5/8") thick, on butt joints and miters from 22.5° to 180°. The only visible trace is a 6 mm access hole for the hex key (Lamello cover caps available). Components can be stacked and transported with connectors pre-installed, and the joint can be taken apart practically wear-free — ideal for finishing after dry assembly.
Cut the groove with the Zeta P2 (depth setting 14), Zeta P2 Cordless or a CNC with the P-System cutter; the lateral tolerance in the groove lets you align parts perfectly flush before locking.
Highlights
Practically wear-free knock-down fitting
Detachable miter connector for 22.5–180° angles and all butt joints

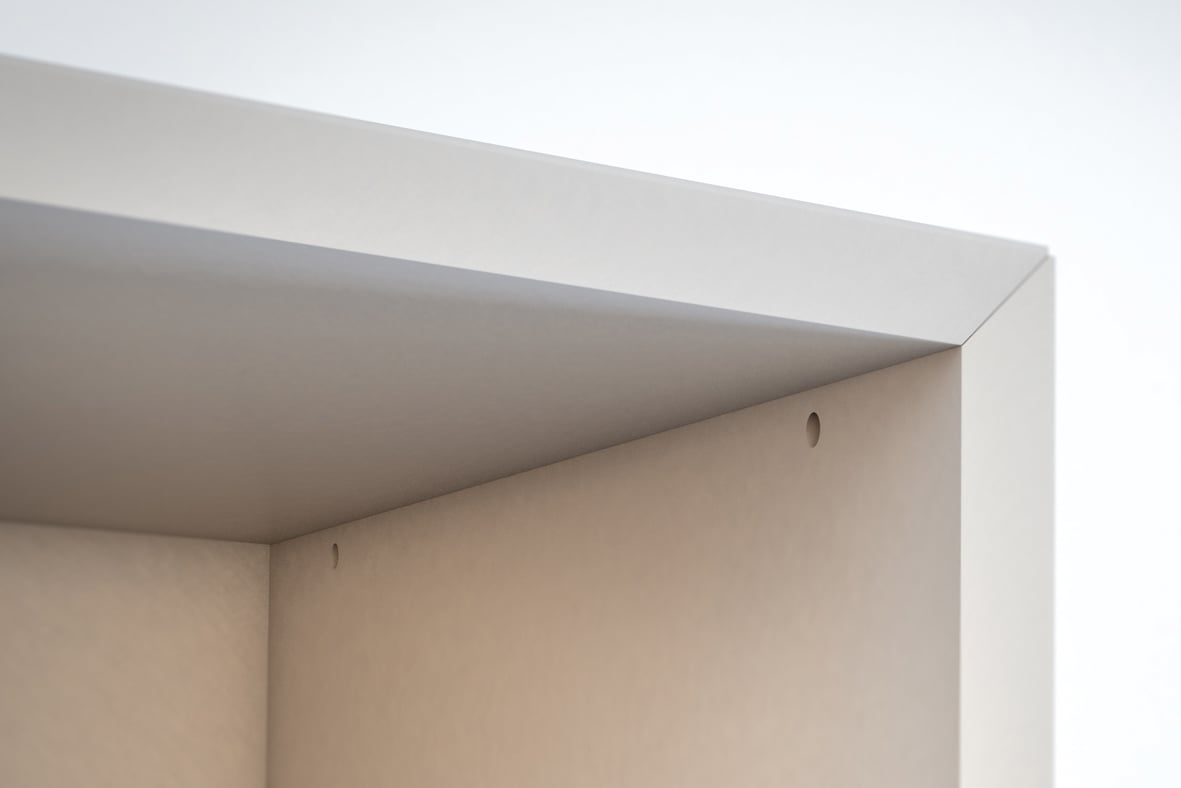

Minimal tool opening of just 6 mm

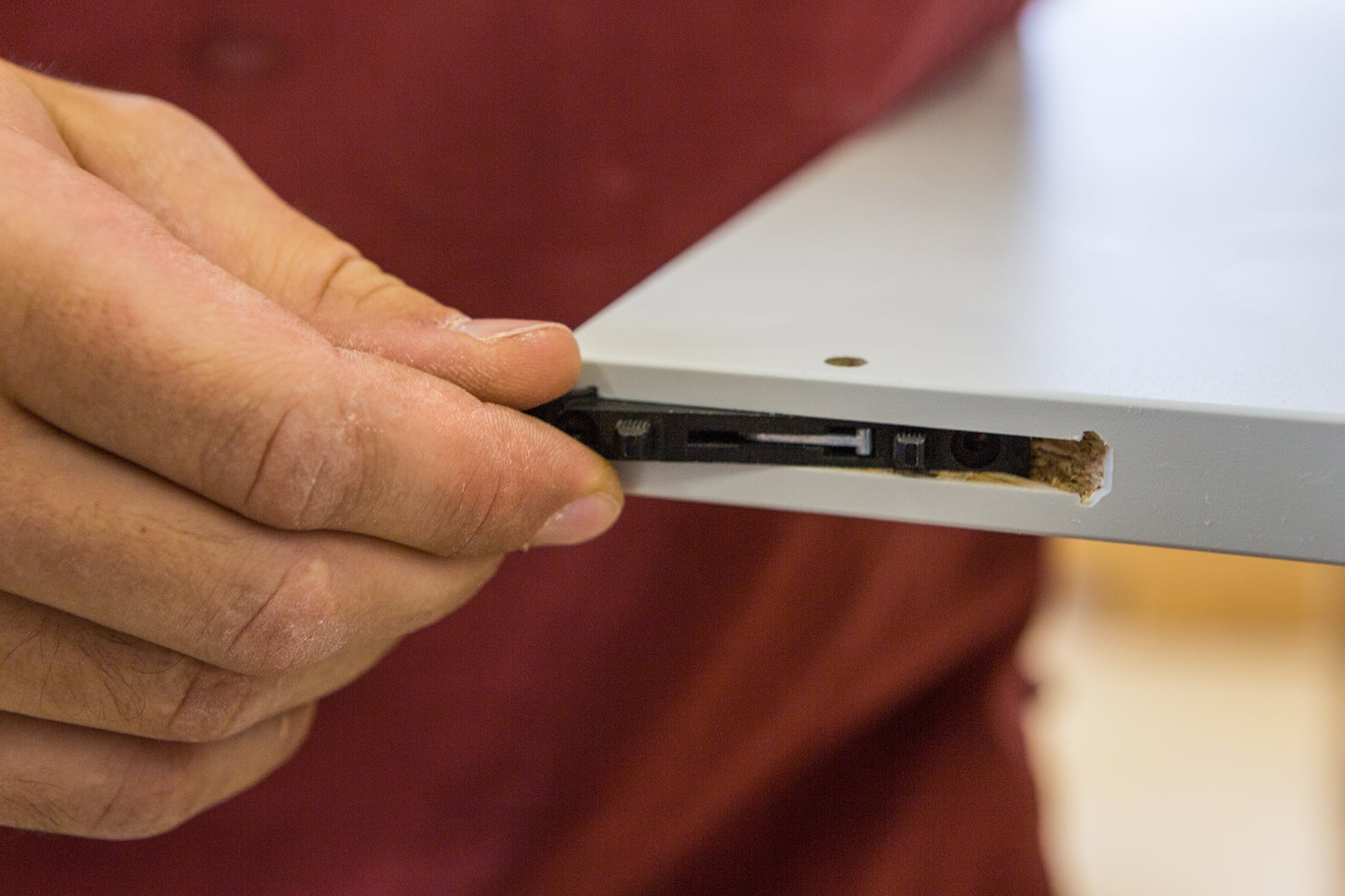

Extremely rapid, tool-free installation of connectors
Stackable components for transport with connectors pre-installed
High clamping force — over 200 lb — for joinery at all angles
Lateral tolerance for efficient installation with Zeta P2, Zeta P2 Cordless or CNC
Watch
Specifications
| Article no. | 145334 — 80 pairs · 145346 — 300 pairs · 145356 — 1000 pairs |
|---|---|
| Size | 66 × 27 × 9.7 mm |
| Shell / lever | Fiberglass-reinforced plastic / zinc die-cast |
| Installation depth | 14 mm (Zeta P2 setting 14) |
| Min. material thickness | 16 mm (5/8") |
| Installation tolerance | Longitudinal ± 1 mm |
| Tensile strength | Particle board ~235 lb · MDF ~266 lb · beech ~411 lb |
| Shear strength | Particle board ~107 lb · MDF ~132 lb · beech ~646 lb |
| Cutter | Ø 100.4 × 7 × 22 mm P-System |
| Brand | Lamello AG, Bubendorf, Switzerland · distributed by Lamello USA (Colonial Saw) |
Documents
Prices are Lamello USA minimum advertised pricing effective September 2026. Specifications from Lamello; strength values are Lamello test figures and vary with material.
Clamex P-14 questions
Frequently Asked Questions
Is the Lamello Clamex P-14 in stock?
Yes — the Clamex P-14 ships from Lamello USA / Family Hardware stock, typically within a few business days, by parcel anywhere in the contiguous U.S. (free on orders of $99 or more) or for pickup in Cape Coral or Fort Myers. Larger quantities for production shops are quoted with a confirmed lead time.
How much does the Clamex P-14 cost?
80 pairs (145334) is $175; 300 pairs (145346) is $610; 1000 pairs (145356) is $1,825. These are Lamello USA minimum advertised prices effective September 2026; request a quote for shop or volume pricing.
What do I need to install Clamex P-14?
A Lamello Zeta P2 or Zeta P2 Cordless set to P-System depth 14, or a CNC with the P-System cutter, in material from 16 mm (5/8"). The connector pushes into the groove by hand — no glue or screws to anchor it. Lock the cam with a 4 mm hex key through the 6 mm access hole; the Clamex P flexible fitting tool reaches inside carcasses.
