Lamello Clamex P-14/10 Medius Dividing Panel Connector

Authorized dealer

P-System connector

Zeta depth 14 + 10

Lamello · art. 145370

Clamex P-14/10 Medius Dividing Panel Connector

Name: Lamello Clamex P-14/10 Medius Dividing Panel Connector
Brand: Lamello
SKU: 145370
Availability: InStock

Back-to-back Clamex joints in a 16 mm (5/8") center panel

Lever half sits in the shelf (14 mm groove), crescent-shaped receiving half sits in the dividing panel (10 mm groove) — two shelves can meet a 5/8" panel at the same height.

$175

art. no. 145370

Authorized dealer · ships from Lamello USA stock — typically within a few business days

Pack size

80 pairs · 145370 · $175

300 pairs · 145371 · $610

Quantity

Need more than 10? Request a shop quote.

Clamex P-14/10 Medius — 80 pairs × 1

$175

Shipping (contiguous U.S.)

Free

Total before tax

$175

Free parcel shipping on orders of $99 or more; $9.95 below that. Sales tax calculated at checkout.

Call 239-443-4360

Prices are Lamello USA minimum advertised pricing effective September 2026. Cabinet shops, installers and commercial accounts: request a quote for volume pricing, CNC tooling and anything in the Lamello catalog not shown here.

About this product

Clamex P-14/10 Medius

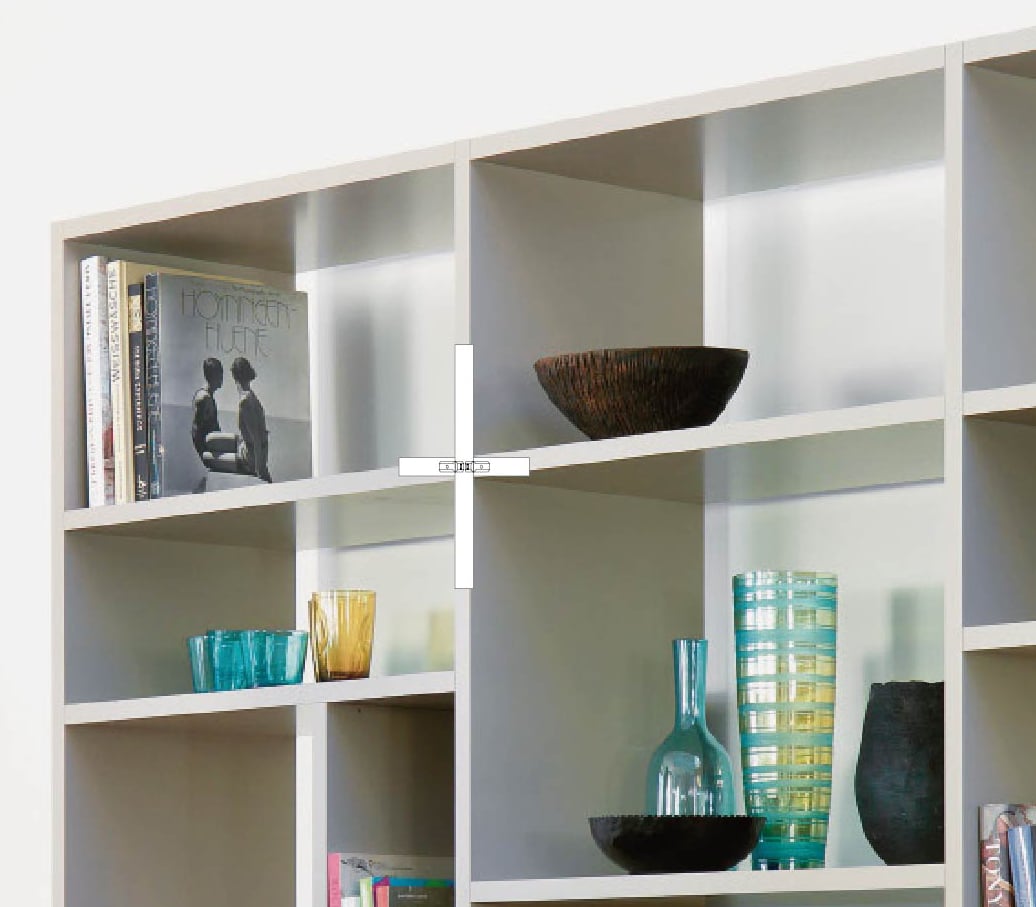

Lamello's Clamex P Medius complements the Clamex P-14 for shelving units where two shelves meet a dividing panel at the same height. Medius consists of two parts with different installation depths: the lever part is installed in the shelf, anchored in a 14 mm deep P-System groove, and thanks to its 10 mm installation depth and crescent-shaped cut-out the receiving part can be fitted back-to-back in a dividing panel just 16 mm (5/8") thick.

The form-locking P-System installs the connector in seconds without tools, glue or screws, and the joint remains detachable and nearly invisible behind a 6 mm access hole. Same groove positioning on both sides of the dividing panel is possible.

Cut the shelf groove at Zeta P2 depth setting 14 and the panel groove at setting 10.

Highlights

Practically wear-free knock-down fitting

Same positioning of P-System grooves on both sides of a dividing panel

Minimal tool opening of just 6 mm

Fast, tool-free installation of connectors

Stackable for transport with connectors pre-installed

Lateral tolerance for efficient installation with Zeta P2 or Zeta P2 Cordless

Specifications

Article no.	145370 — 80 pairs · 145371 — 300 pairs
Size	66 × 27 × 9.7 mm (lever half) · 52 × 7.5 × 9.7 mm (Medius half)
Shell / lever	Fiberglass-reinforced plastic / zinc die-cast
Installation depth	14 mm lever half · 10 mm Medius half
Min. dividing panel thickness	16 mm (5/8")
Installation tolerance	Longitudinal ± 1 mm
Tensile strength	Particle board ~136 lb · MDF ~178 lb · beech ~242 lb
Shear strength	Particle board ~98 lb · MDF ~116 lb · beech ~336 lb
Cutter	Ø 100.4 × 7 × 22 mm P-System
Brand	Lamello AG, Bubendorf, Switzerland · distributed by Lamello USA (Colonial Saw)

Documents

Prices are Lamello USA minimum advertised pricing effective September 2026. Specifications from Lamello; strength values are Lamello test figures and vary with material.

Goes with it

Pair with the Clamex P-14/10 Medius

Clamex P-14

from $175

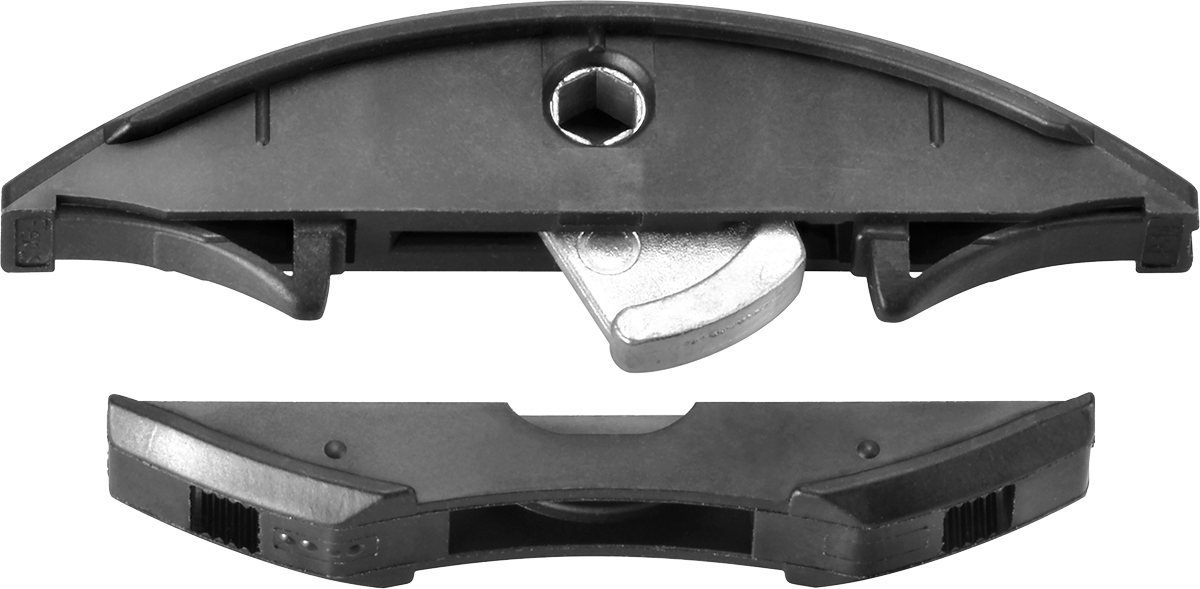

Clamex P-14/10 Flexus

All Lamello Tools & Connectors Call 239-443-4360

Clamex P-14/10 Medius questions

Frequently Asked Questions

Is the Lamello Clamex P-14/10 Medius in stock?

Yes — the Clamex P-14/10 Medius ships from Lamello USA / Family Hardware stock, typically within a few business days, by parcel anywhere in the contiguous U.S. (free on orders of $99 or more) or for pickup in Cape Coral or Fort Myers. Larger quantities for production shops are quoted with a confirmed lead time.

How much does the Clamex P-14/10 Medius cost?

80 pairs (145370) is $175; 300 pairs (145371) is $610. These are Lamello USA minimum advertised prices effective September 2026; request a quote for shop or volume pricing.

What do I need to install Clamex P-14/10 Medius?

A Lamello Zeta P2 or Zeta P2 Cordless set to P-System depth 14 + 10, or a CNC with the P-System cutter, in material from 16 mm (5/8") panel. The connector pushes into the groove by hand — no glue or screws to anchor it. Lock the cam with a 4 mm hex key through the 6 mm access hole; the Clamex P flexible fitting tool reaches inside carcasses.
